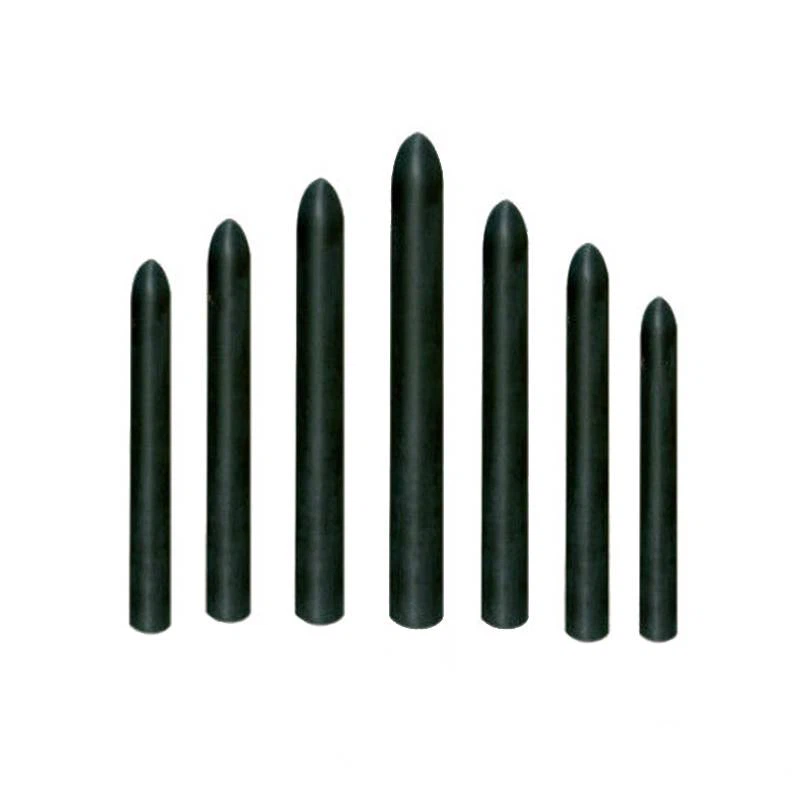

Tundish Stopper
MOQ: 100 pcs
Kev piav qhia
Tundish stopper yog tsim los ntawm tus pas nrig, lub tes tsho cib thiab ntsaws cib. Cov tub ntxhais pas nrig feem ntau yog ua los ntawm cov pa roj carbon steel puag ncig steel nrog txoj kab uas hla ntawm 30-60 hli. Lub sab sauv kawg yog txuas nrog tus ntoo khaub lig caj npab ntawm lub lifting mechanism los ntawm bolts, qis kawg yog txuas nrog lub ntsaws cib los ntawm threads los yog pins, thiab lub tes tsho nruab nrab cib. Tundish stopper yuav tsum tau ua tib zoo tsim thiab siv tom qab ci thiab ziab rau ntau tshaj 48 teev kom tsis txhob muaj kev sib tsoo tshwm sim los ntawm kev tawg ntawm refractory.
Cov pas nrig stopper yog ntsia rau hauv tundish thaum siv. Tus nqi ntawm cov hlau molten nkag mus rau hauv pwm tuaj yeem hloov kho los ntawm kev tswj txoj haujlwm ntawm tus pas nrig lub taub hau mus rau tundish nozzle, thiab argon tuaj yeem raug tshuab mus rau tundish los ntawm argon tshuab lub qhov los tiv thaiv lub nozzle los ntawm kev thaiv.
Nta
Zoo erosion kuj / Corrosion kuj / ruaj khov txaus tswj thaum lub sij hawm casting / Kaw kom nruj tom qab casting
Daim ntawv thov
Tundish stopper yog dav siv nyob rau hauv ladle, refined ladle, hluav taws xob rauv refined ladle, tundish.
Physical And Chemical Indicators
|
Hom /Cov khoom
|
Tundish Stopper |
|||||||
|
Lub cev |
Slag Kab |
Lub taub hau |
||||||
|
Chemical Composition (%) |
Al2O3 |
53.28 |
-- |
86.61 |
71.43 |
15.1 |
||
|
Fe2O 3 |
0.91 |
-- |
0.43 |
0.91 |
-- |
|||
|
SiO 2 |
14.48 |
-- |
0.77 |
10.65 |
8.95 |
|||
|
TiO 2 |
1.41 |
-- |
0.33 |
-- |
-- |
|||
|
ZrO2 |
-- |
75.1 |
-- |
-- |
0.29 |
|||
|
CaO |
-- |
1.71 |
-- |
-- |
1.56 |
|||
|
MgO |
-- |
-- |
-- |
5.71 |
56.8 |
|||
|
LOI (%) |
30.59 |
15.01 |
11.11 |
10.95 |
17.3 |
|||
|
Qhov ceev (g / cm3) |
2.42 |
3.78 |
2.85 |
2.78 |
2.59 |
|||
|
Pom tseeb Porosity (%) |
14.3 |
15.61 |
17.7 |
17.7 |
16.7 |
|||
|
Fracture Strength (MPa) |
8.4 |
6.97 |
6.73 |
6.73 |
7.8 |
|||
|
Daim ntawv thov tseem ceeb |
Ladle & Tundish |
|||||||
